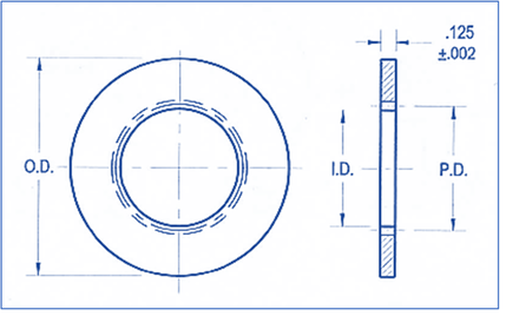

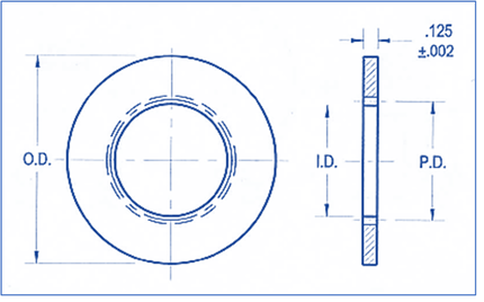

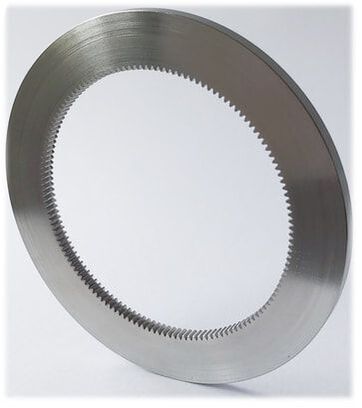

Precision Internal Gears
|
|
24 Pitch Internal Gears
Face: 1/8" Materials
20˚ Pressure Angle AGMA 10 Made in the USA |
24 Pitch 1/8" Face Precision Internal Gear
|
|
Allied Devices
DBY1T20 DBZ1T20 DBY1T25 DBZ1T25 DBY1T30 DBZ1T30 DBY1T35 DBZ1T35 DBY2T35 DBZ2T35 DBY2T40 DBZ2T40 DBY2T45 DBZ2T45 DBY2T50 DBZ2T50 DBY2T60 DBZ2T60 DBY3T60 DBZ3T60 DBY3T65 DBZ3T65 DBY3T70 DBZ3T70 DBY3T72 DBZ3T72 DBY3T78 DBZ3T78 |
WM Berg
N24S2-20 N24A2-20 N24S2-25 N24A2-25 N24S2-30 N24A2-30 N24S2-35 N24A2-35 N24S3-35 N24A3-35 N24S3-40 N24A3-40 N24S3-45 N24A3-45 N24S3-50 N24A3-50 N24S3-60 N24A3-60 N24S4-60 N24A4-60 N24S4-65 N24A4-65 N24S4-70 N24A4-70 N24S4-72 N24A4-72 N24S4-78 N24A4-78 |
Omnicomponents
24N1S20 24N1A20 24N1S25 24N1A25 24N1S30 24N1A30 24N1S35 24N1A35 24N2S35 24N2A35 24N2S40 24N2A40 24N2S45 24N2A45 24N2S50 24N2A50 24N2S60 24N2A60 24N3S60 24N3A60 24N3S65 24N3A65 24N3S70 24N3A70 24N3S72 24N3A72 24N3S78 24N3A78 |
P.D.
.8333 .8333 1.0417 1.0417 1.2500 1.2500 1.4583 1.4583 1.4583 1.4583 1.6667 1.6667 1.8750 1.8750 2.0833 2.0833 2.5000 2.5000 2.5000 2.5000 2.7083 2.7083 2.9167 2.9167 3.0000 3.0000 3.2500 3.2500 |
I.D.
.750 .750 .958 .958 1.166 1.166 1.375 1.375 1.375 1.375 1.583 1.583 1.791 1.791 2.000 2.000 2.416 2.416 2.416 2.416 2.625 2.625 2.834 2.834 2.916 2.916 3.166 3.166 |
O.D.
1.998 1.998 1.998 1.998 1.998 1.998 1.998 1.998 2.998 2.998 2.998 2.998 2.998 2.998 2.998 2.998 2.998 2.998 3.998 3.998 3.998 3.998 3.998 3.998 3.998 3.998 3.998 3.998 |
Material
303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. |
|
32 Pitch Internal Gears
Face: 1/8" Materials
20˚ Pressure Angle AGMA 10 Made in the USA |
32 Pitch 1/8" Face Precision Internal Gear
|
|
Allied Device
DCA1T25 DCB1T25 DCA1T30 DCB1T30 DCA1T35 DCB1T35 DCA1T40 DCB1T40 DCA1T45 DCB1T45 DCA2T45 DCB2T45 DCA2T50 DCB2T50 DCA2T60 DCB2T60 DCA2T70 DCB2T70 DCA2T80 DCB2T80 DCA3T80 DCB3T80 DCA3T85 DCB3T85 DCA3T90 DCB3T90 DCA3T96 DCB3T96 DCA3T100 DCB3T100 |
WM Berg
N32S2-25 N32A2-25 N32S2-30 N32A2-30 N32S2-35 N32A2-35 N32S2-40 N32A2-40 N32S2-45 N32A2-45 N32S3-45 N32A3-45 N32S3-50 N32A3-50 N32S3-60 N32A3-60 N32S3-70 N32A3-70 N32S3-80 N32A3-80 N32S4-80 N32A4-80 N32S4-85 N32A4-85 N32S4-90 N32A4-90 N32S4-96 N32A4-96 N32S4-100 N32A4-100 |
Omnicomponents
32N1S25 32N1A25 24N1S30 32N1A30 32N1S35 32N1A35 32N1S40 32N1A40 32N1S45 32N1A45 32N2S45 32N2A45 32N2S50 32N2A50 32N2S60 32N2A60 32N2S70 32N2A70 32N2S80 32N2A80 32N3S80 32N3A80 32N3S85 32N3A85 32N3S90 32N3A90 32N3S96 32N3A96 32N3S100 32N3A100 |
P.D.
.7813 .7813 .9375 .9375 1.0938 1.0938 1.2500 1.2500 1.4063 1.4063 1.4063 1.4063 1.5625 1.5625 1.8750 1.8750 2.1875 2.1875 2.5000 2.5000 2.5000 2.5000 2.6563 2.6563 2.8125 2.8125 3.0000 3.0000 3.1250 3.1250 |
I.D.
.718 .718 .875 .875 1.031 1.031 1.187 1.187 1.343 1.343 1.343 1.343 1.500 1.500 1.812 1.812 2.125 2.125 2.437 2.437 2.437 2.437 2.593 2.593 2.750 2.750 2.937 2.937 3.062 3.062 |
O.D.
1.998 1.998 1.998 1.998 1.998 1.998 1.998 1.998 1.998 1.998 2.998 2.998 2.998 2.998 2.998 2.998 2.998 2.998 2.998 2.998 3.998 3.998 3.998 3.998 3.998 3.998 3.998 3.998 3.998 3.998 |
Material
303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. |
|
48 Pitch Internal Gears
Face: 1/8" Materials
20˚ Pressure Angle AGMA 10 Made in the USA |
48 Pitch 1/8" Precision Internal Gears
|
|
Allied Devices
DCC1T40 DCD1T40 DCC1T50 DCD1T50 DCC1T60 DCD1T60 DCC1T70 DCD1T70 DCC2T70 DCD2T70 DCC2T80 DCD2T80 DCC2T90 DCD2T90 DCC2T100 DCD2T100 DCC2T120 DCD2T120 DCC3T120 DCD3T120 DCC3T130 DCD3T130 DCC3T140 DCD3T140 DCC3T144 DCD3T144 DCC3T156 DCD3T156 |
WM Berg
N48S2-40 N48A2-40 N48S2-50 N48A2-50 N48S2-60 N48A2-60 N48S2-70 N48A2-70 N48S3-70 N48A3-70 N48S3-80 N48A3-80 N48S3-90 N48A3-90 N48S3-100 N48A3-100 N48S3-120 N48A3-120 N48S4-120 N48A4-120 N48S4-130 N48A4-130 N48S4-140 N48A4-140 N48S4-144 N48A4-144 N48S4-156 N48A4-156 |
Omnicomponents
48N1S40 48N1A40 48N1S50 48N1A50 48N1S60 48N1A60 48N1S70 48N1A70 48N2S70 48N2A70 48N2S80 48N2A80 48N2S90 48N2A90 48N2S100 48N2A100 48N2S120 48N2A120 48N3S120 48N3A120 48N3S130 48N3A130 48N3S140 48N3A140 48N3S144 48N3A144 48N3S156 48N3A156 |
P.D.
.8333 .8333 1.0417 1.0417 1.2500 1.2500 1.4583 1.4583 1.4583 1.4583 1.6667 1.6667 1.8750 1.8750 2.0833 2.0833 2.5000 2.5000 2.5000 2.5000 2.7083 2.7083 2.9167 2.9167 3.0000 3.0000 3.2500 3.2500 |
I.D.
.791 .791 1.000 1.000 1.208 1.208 1.416 1.416 1.416 1.416 1.625 1.625 1.833 1.833 2.041 2.041 2.458 2.458 2.458 2.458 2.668 2.668 2.875 2.875 2.958 2.958 3.208 3.208 |
O.D.
1.998 1.998 1.998 1.998 1.998 1.998 1.998 1.998 2.998 2.998 2.998 2.998 2.998 2.998 2.998 2.998 2.998 2.998 3.998 3.998 3.998 3.998 3.998 3.998 3.998 3.998 3.998 3.998 |
Material
303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM .303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. |
|
64 Pitch Internal Gears
Face: 1/8" Materials
20˚ Pressure Angle AGMA 10 Made in the USA |
64 Pitch 1/8" Face Precision Internal Gears
|
|
Allied Devices
DCE1T50 DCF1T50 DCE1T60 DCF1T60 DCE1T70 DCF1T70 DCE1T80 DCF1T80 DCE1T90 DCF1T90 DCE2T90 DCF2T90 DCE2T100 DCF2T100 DCE2T120 DCF2T120 DCE2T140 DCF2T140 DCE2T160 DCF2T160 DCE3T160 DCF3T160 DCE3T170 DCF3T170 DCE3T180 DCF3T180 DCE3T192 DCF3T192 DCE3T200 DCF3T200 |
WM Berg
N64S2-50 N64A2-50 N64S2-60 N64A2-60 N64S2-70 N64A2-70 N64S2-80 N64A2-80 N64S2-90 N64A2-90 N64S3-90 N64A3-90 N64S3-100 N64A3-100 N64S3-120 N64A3-120 N64S3-140 N64A3-140 N64S3-160 N64A3-160 N64S4-160 N64A4-160 N64S4-170 N64A4-170 N64S4-180 N64A4-180 N64S4-192 N64A4-192 N64S4-200 N64A4-200 |
Omnicomponents
64N1S50 64N1A50 64N1S60 64N1A60 64N1S70 64N1A70 64N1S80 64N1A80 64N1S90 64N1A90 64N2S90 64N2A90 64N2S100 64N2A100 64N2S120 64N2A120 64N2S140 64N2A140 64N2S160 64N2A160 64N3S160 64N3A160 64N3S170 64N3A170 64N3S180 64N3A180 64N3S192 64N3A192 64N3S200 64N3A200 |
P.D.
.7813 .7813 .9375 .9375 1.0938 1.0938 1.2500 1.2500 1.4063 1.4063 1.4063 1.4063 1.5625 1.5625 1.8750 1.8750 2.1875 2.1875 2.5000 2.5000 2.5000 2.5000 2.6563 2.6563 2.8125 2.8125 3.0000 3.0000 3.1250 3.1250 |
I.D.
.750 .750 .906 .906 1.062 1.062 1.219 1.219 1.375 1.375 1.375 1.375 1.531 1.531 1.843 1.843 2.156 2.156 2.468 2.468 2.468 2.468 2.625 2.625 2.781 2.781 2.968 2.968 3.093 3.093 |
O.D.
1.998 1.998 1.998 1.998 1.998 1.998 1.998 1.998 1.998 1.998 2.998 2.998 2.998 2.998 2.998 2.998 2.998 2.998 2.998 2.998 3.998 3.998 3.998 3.998 3.998 3.998 3.998 3.998 3.998 3.998 |
Material
303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. |
|
72 Pitch Internal Gears
Face: 1/8" Materials
20˚ Pressure Angle AGMA 10 Made in the USA |
72 Pitch 1/8" Face Precision Internal Gear
|
|
Allied Devices
DCG1T60 DCH1T60 DCG1T80 DCH1T80 DCG1T100 DCH1T100 DCG1T110 DCH1T110 DCG2T110 DCH2T110 DCG2T120 DCH2T120 DCG2T140 DCH2T140 DCG2T160 DCH2T160 DCG2T180 DCH2T180 DCG3T180 DCH3T180 DCG3T190 DCH3T190 DCG3T200 DCH3T200 DCG3T216 DCH3T216 DCG3T220 DCH3T220 |
WM Berg
N72S2-60 N72A2-60 N72S2-80 N72A2-80 N72S2-100 N72A2-100 N72S2-110 N72A2-110 N72S3-110 N72A3-110 N72S3-120 N72A3-120 N72S3-140 N72A3-140 N72S3-160 N72A3-160 N72S3-180 N72A3-180 N72S4-180 N72A4-180 N72S4-190 N72A4-190 N72S4-200 N72A4-200 N72S4-216 N72A4-216 N72S4-220 N72A4-220 |
Omnicomponents
72N1S60 72N1A60 72N1S80 72N1A80 72N1S100 72N1A100 72N1S110 72N1A110 72N2S110 72N2A110 72N2S120 72N2A120 72N2S140 72N2A140 72N2S160 72N2A160 72N2S180 72N2A180 72N3S180 72N3A180 72N3S190 72N3A190 72N3S200 72N3A200 72N3S216 72N3A216 72N3S220 72N3A220 |
P.D.
.8333 .8333 1.1111 1.1111 1.3889 1.3889 1.5278 1.5278 1.5278 1.5278 1.6667 1.6667 1.9444 1.9444 2.2222 2.2222 2.5000 2.5000 2.5000 2.5000 2.6389 2.6389 2.7778 2.7778 3.0000 3.0000 3.0556 3.0556 |
I.D.
.805 .805 1.083 1.083 1.361 1.361 1.500 1.500 1.500 1.500 1.639 1.639 1.916 1.916 2.194 2.194 2.472 2.472 2.472 2.472 2.611 2.611 2.750 2.750 2.972 2.972 3.027 3.027 |
O.D.
1.998 1.998 1.998 1.998 1.998 1.998 1.998 1.998 2.998 2.998 2.998 2.998 2.998 2.998 2.998 2.998 2.998 2.998 3.998 3.998 3.998 3.998 3.998 3.998 3.998 3.998 3.998 3.998 |
Material
303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. |
|
96 Pitch Internal Gears
Face: 1/8" Materials
20˚ Pressure Angle AGMA 10 Made in the USA |
96 Pitch 1/8" Face Precision Internal Gear
|
|
Allied Devices
DCJ1T80 DCK1T80 DCJ1T100 DCK1T100 DCJ1T120 DCK1T120 DCJ1T140 DCK1T140 DCJ1T150 DCK1T150 DCJ2T150 DCK2T150 DCJ2T160 DCK2T160 DCJ2T180 DCK2T180 DCJ2T200 DCK2T200 DCJ2T240 DCK2T240 DCJ3T240 DCK3T240 DCJ3T250 DCK3T250 DCJ3T260 DCK3T260 DCJ3T280 DCK3T280 DCJ3T288 DCK3T288 DCJ3T300 DCK3T300 |
WM Berg
N96S2-80 N96A2-80 N96S2-100 N96A2-100 N96S2-120 N96A2-120 N96S2-140 N96A2-140 N96S2-150 N96A2-150 N96S3-150 N96A3-150 N96S3-160 N96A3-160 N96S3-180 N96A3-180 N96S3-200 N96A3-200 N96S3-240 N96A3-240 N96S4-240 N96A4-240 N96S4-250 N96A4-250 N96S4-260 N96A4-260 N96S4-280 N96A4-280 N96S4-288 N96A4-288 N96S4-300 N96A4-300 |
Omnicomponents
96N1S80 96N1A80 96N1S100 96N1A100 96N1S120 96N1A120 96N1S140 96N1A140 96N1S150 96N1A150 96N2S150 96N2A150 96N2S160 96N2A160 96N2S180 96N2A180 96N2S200 96N2A200 96N2S240 96N2A240 96N3S240 96N3A240 96N3S250 96N3A250 96N3S260 96N3A260 96N3S280 96N3A280 96N3S288 96N3A288 96N3S300 96N3A300 |
P.D.
.8333 .8333 1.0416 1.0416 1.2500 1.2500 1.4583 1.4583 1.5625 1.5625 1.5625 1.5625 1.6667 1.6667 1.8750 1.8750 2.0833 2.0833 2.5000 2.5000 2.5000 2.5000 2.6042 2.6042 2.7083 2.7083 2.9167 2.9167 3.0000 3.0000 3.1250 3.1250 |
I.D.
.812 .812 1.021 1.021 1.230 1.230 1.438 1.438 1.542 1.542 1.542 1.542 1.646 1.646 1.855 1.855 2.063 2.063 2.480 2.480 2.480 2.480 2.584 2.584 2.688 2.688 2.896 2.896 2.980 2.980 3.105 3.105 |
O.D.
1.9980 1.9980 1.9980 1.9980 1.9980 1.9980 1.9980 1.9980 1.9980 1.9980 2.9980 2.9980 2.9980 2.9980 2.9980 2.9980 2.9980 2.9980 2.9980 2.9980 3.9980 3.9980 3.9980 3.9980 3.9980 3.9980 3.9980 3.9980 3.9980 3.9980 3.9980 3.9980 |
Material
303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. |
